Stopp LED taillight and fender with license plate LEDs

Clear LED stop tail numberplate lamp mudguard

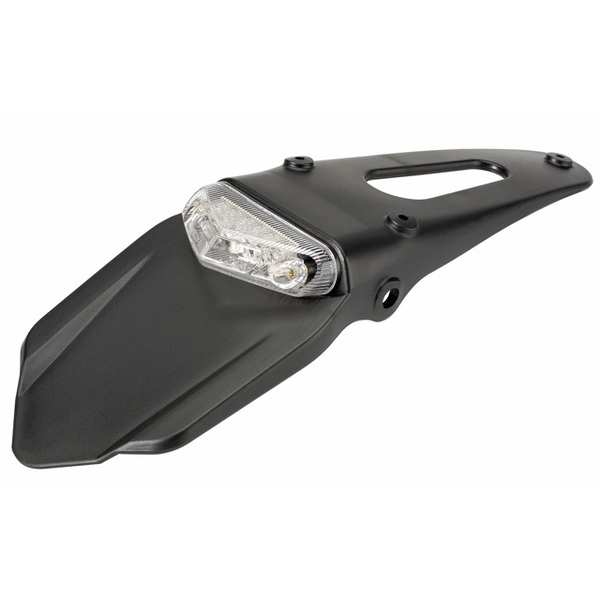

This rear fender LED taillight combination is constructed from high impact plastic. It has a quality matte finish and high powered LED lights. It will bolt under your DRZ fender and offers a perfect solution to anyone looking to get a recreational registration for their dirtbike. With road reg in mind, the taillight fender also has moulded mount points for rear indicators, making for a neat fit and finish.

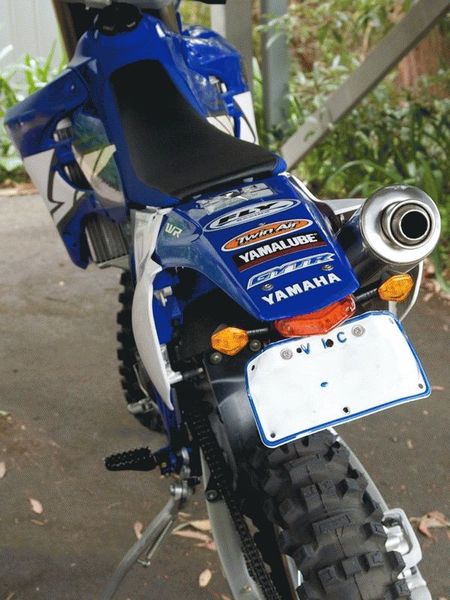

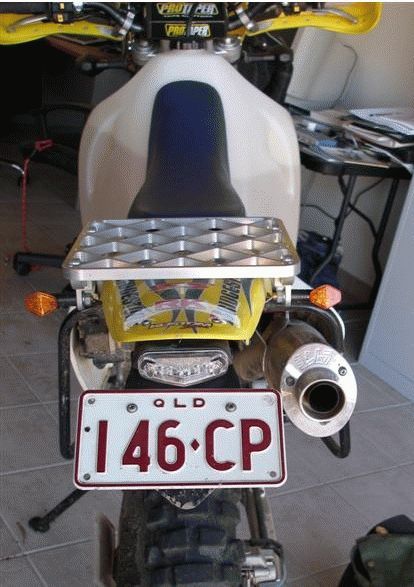

Installation: The lamp can fit in between the rear guard and sub-frame extension, as shown below. Depending on the sub-frame model you may need to do a little cutting of the black plastic of the lamp. If you have a motocross rear guard then it will bolt straight under the guard. Some customers have even installed it to the sub-frame using only cable ties.

Features:
* Incorporates a proper taillight (for night use) and also a stop/brake light.
* Pre-wired with connectors for easy installation

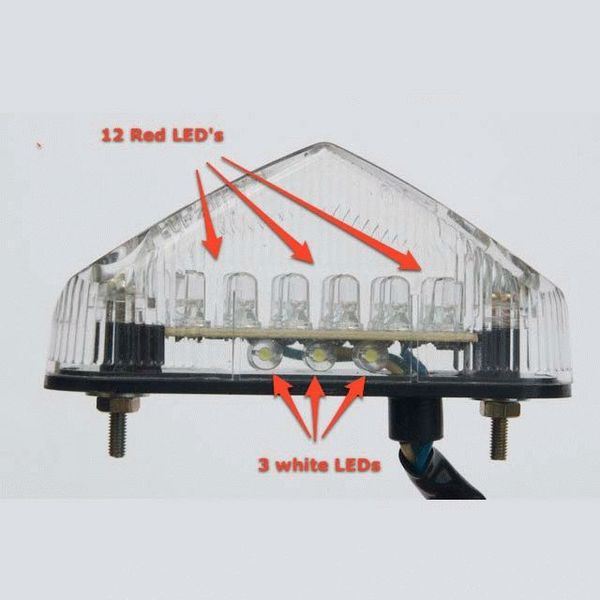

* 12 superbright red LED's under a clear lens improve the look of your bike
* 3 superbright white LED's for your numberplate illumination
* Indicator mount points for easy installation of indicators - see other listings for matching indicators
* Low current draw
* Meets Australian Design Regulations (ADR) for motorbike stop/tail light

Dimensions
The LED lens is 85mm wide. The rear fender is 107mm wide at the widest point, and extends 115mm below the led lights.

Weight: 140g

Wiring
Green wire = Earth
Yellow wire = Tail light
Blue wire = Stop light

For 12 Volt system.
Tail: 0.02 Amps - 0.24 Watts
Stop: 0.05 Amps - 0.6 Watts

For 13.5 Volt system.
Tail: 0.03 Amps - 0.4 Watts
Stop: 0.08 Amps - 1.08 Watts
