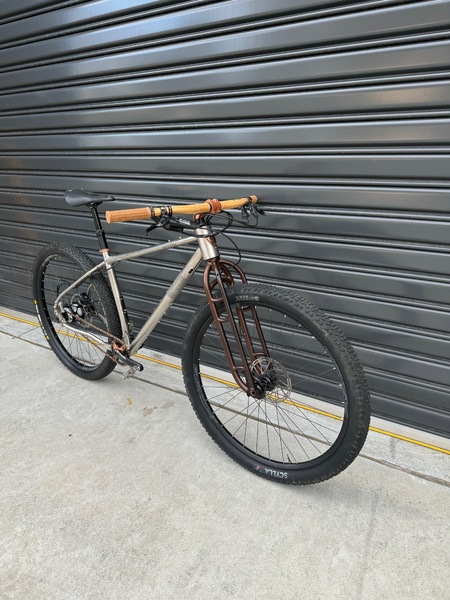

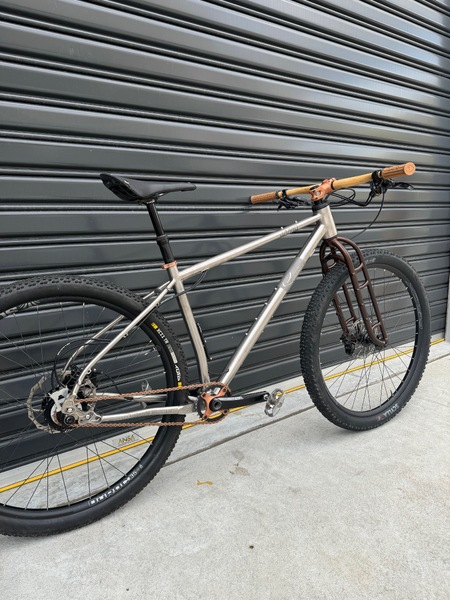

Simpatico JAMO Large Titanium MTB bikepacking frameset

Rigid hardtail mountainbike optimised for bikepacking.

Standard frame Includes

• 2 x 3 boss cages under down tube mounts
• 1 x 3 boss cage mount top down tube
• 1 x 2 boss bottle cage mount on seat tube
• rack mounts Rear

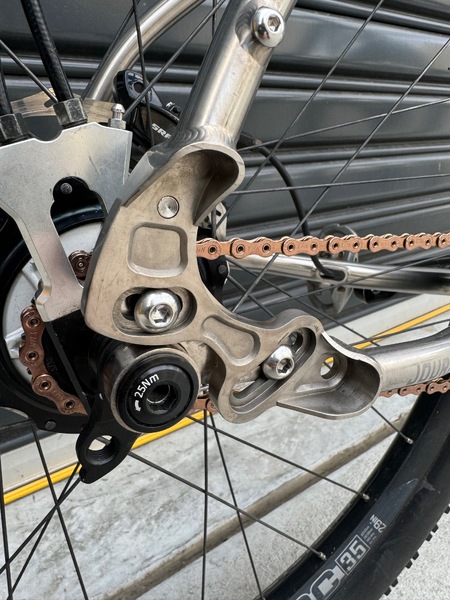

• options for rocker dropout with UDH or standard UDH Transmission dropouts

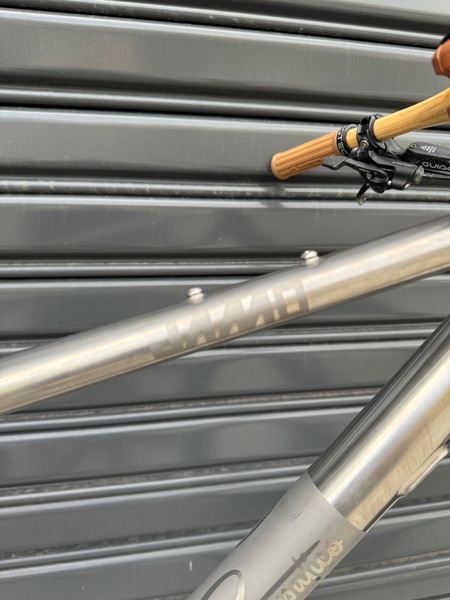

• Top tube 2 boss cage mount
• Colour-matched stem and seat clamp
• Seat clamp diameter 31.6

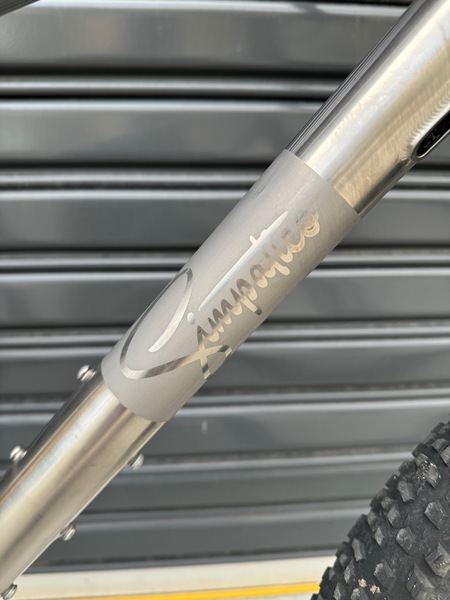

• Grade 9 Ti 3AI-2.5V wwith a brushed finish

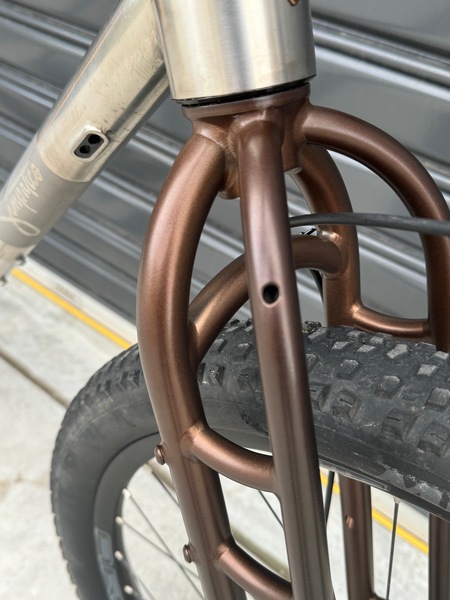

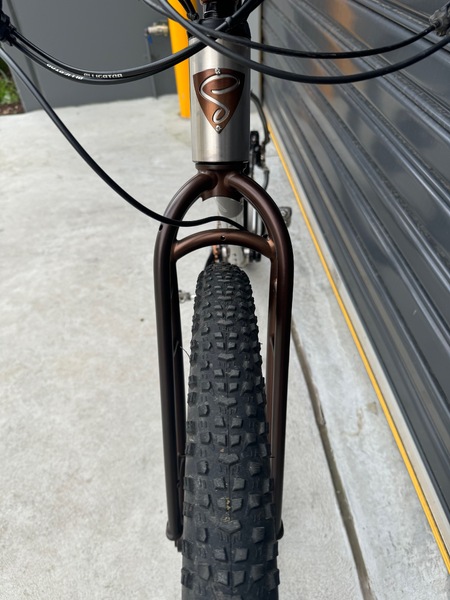

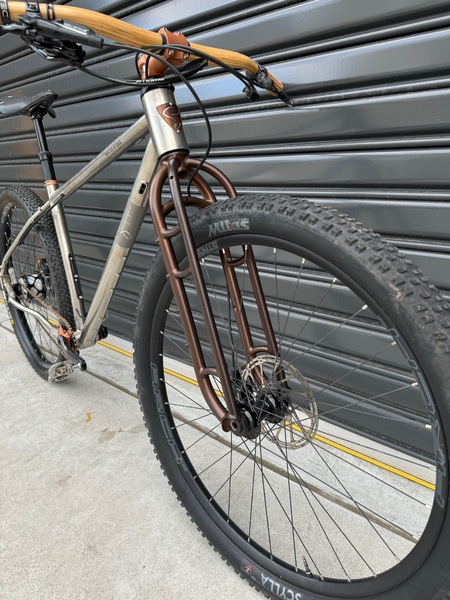

The Simpatico JAMO uses our unique CargoTruss Titanium Fork. This provides an idela blend of stiffness, low weight, high durability, and lots of room for cargo attachment.


CargoTruss Fork Specifications

A/C 490mm

Rake 45mm

Weight is approx 1000-1050g depending on steerer length required

Steerer Tapered 1.5-1 1/8

Cable routing Can accommodate external routed hose or internal routed hose.

Dynamo Routing- internal routing included

Axle Spacing 15 x110mm

Standard 3 boss fork mounts including 4 position mounts for optimization

The fork is finished in a Prismatic powder coating for durability and a touch of colour.

Geometry Chart
