Round Front Brake Disc Suzuki GSX400 SSN Katana GSX 400 1992
Notify me when back in stock
Round Disc Rotor Front Floating Suzuki 400 GSX400 SSN Katana
These discs meet the required minimum thickness and are legal for road use. They also carry the MIN TH markings as required by ADR. S3 discs come with a 24 Month Warranty
Part: DBFFGSF788R
Compatibility
Direct replacement for the following SUZUKI models:
RGV250 J/K/L Front 88-90
GSX-R400 V Front 89
GSX400 F,J,K,L Front 88-90
GSX400 Impulse (Japan) Front 94-
GSX400 SSN Katana Front 92
RF400 R Front 93-97
GSF600 Bandit Front 96-04
GSF600 S Bandit Front 95-04
GSX600F K,L,M,N,P,R,S,T,V Front 89-97
GSX600F W,X,Y,K1,K2 Front 98-02
RF600 R-P,R,S,T,V Front 93-97
SV650 S-X,Y,K1,K2 Front 99-02
SV650 X,Y,K1,K2 Front 99-02
GSX750F K,L,M,N,P,R,S,T,V,W,X,Y,K1,K2 Front 88-02

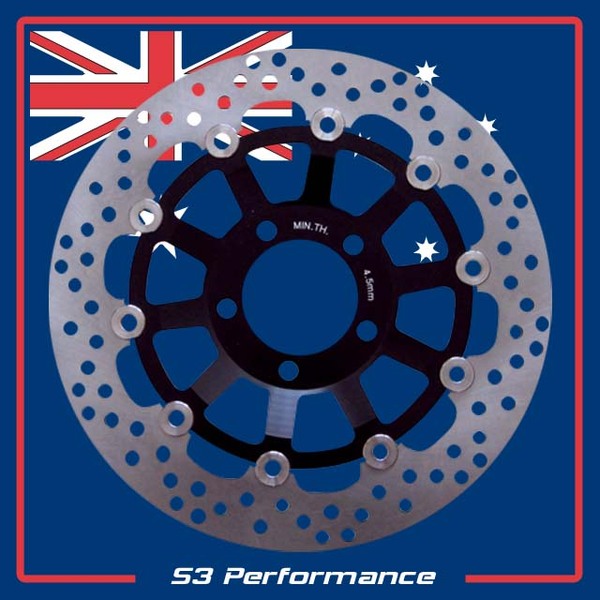

Front Floating Rotors
This front floating disc rotor is constructed from 420 stainless steel, with a 7075 Aluminium alloy centre hub for light weight. The design of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity.
Features:
- High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics.
- Suitable for left and right hand fitments
Dimensions
Rotor Diameter: 290mm
Rotor Thickness: 5.0mm
Inner Clearance: 64mm
Bolt Diameter: 10mm
Bolt Offset: 86mm
Weight: 1.53kg per rotor
Installation
Simply remove existing rotors and install the new ones. May not always be compatible with the KTM speed sensor?
The price listed is for one front brake disk rotor. If you want a pair, please buy two of these disc brakes, and we will post them together at no extra cost within Australia. If you want the discs sent by Express Post, or sent internationally, there is an extra charge per rotor.
Product Origin
Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.
Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.
We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
(DBFFGSF788R.E05)
| SKU | DBFFGSF788R.E05 |
| Brand | Stopp |
| Shipping Weight | 1.4300kg |
| Shipping Width | 0.320m |
| Shipping Height | 0.020m |
| Shipping Length | 0.320m |
| Unit Of Measure | ea |
| Assembled Length | 0.320m |
| Assembled Height | 0.020m |
| Assembled Width | 0.320m |
