Rear Brake Non Wave Round Disc Honda CB350 SG/SJ 86-90

Front Disc Brake Rotor XR650L NX650 XL600 XLV650 CB350 CB450

An Australian company, S3 Performance Pty Ltd has these high quality discs in stock, in Melbourne and ready to ship.

Part Number: DBFSCB386-M

Compatibility
Direct replacement for the following models:

Honda
CB350 SG/SJ Front 86-90
CB450 SG/SJ Front 86-88
XL600 V-V,W,X Transalp Front 97-99
NX650 J,K,L,M Dominator Front 88-91
NX650 N,P,R,S,T,V,W,X,Y,1,2 Dominator Front 92-02
XLV650 Transalp Front 00-07
XR650L Front 93-08

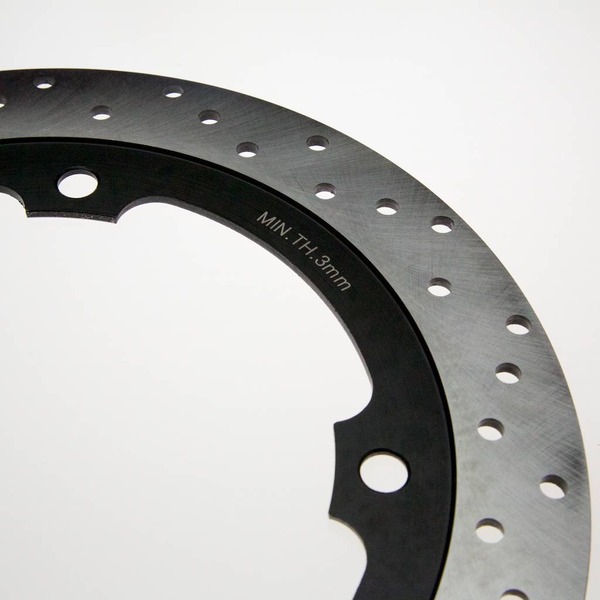

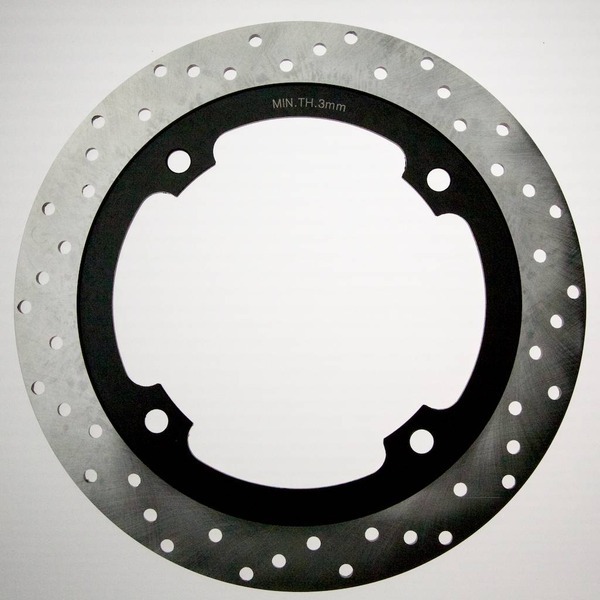

This front disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- High carbon stainless steel, hardened and tempered to ensure low pad and rotor wear characteristics
- Slotted for improved performance

Dimensions
Rotor Thickness 4mm
Outer Diameter 256mm
Inner Diameter 144mm
Bolt Offset 166mm
Bolt Diameter 10mm

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.

1 or a pair?
The price listed is for one front brake disk rotor. If you want a pair, please buy two of these disc brakes, and we will post them together at no extra cost within Australia. If you want the discs sent by Express Post, or sent internationally, there is an extra charge per rotor.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
