Rear Brake Disc Yamaha TDR125 TDR 125 (Italy) 1989-93

Wave Disc Brake Rotor Rear Yamaha DT125 TDR125 DBRSDT186

An Australian company, S3 Performance Pty Ltd has these high quality discs in stock, in Melbourne and ready to ship.

Part Number: DBRSDT186

Compatibility
Direct replacement for the following models:

Yamaha
DT125 LC , R/RE Rear 88-
DT125 R Rear 86-03
DT125 RE Rear 04-07
DT125 X Rear 05-06
TDR125 (Italy) Rear 89-93
TDR125 (Japan) Rear 93-0

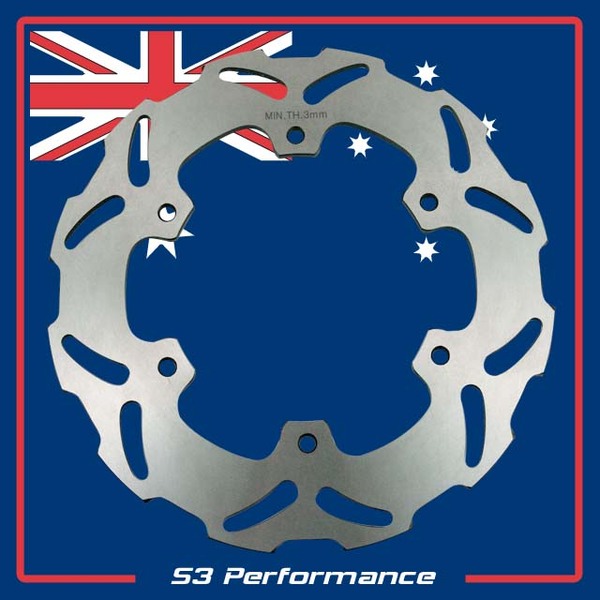

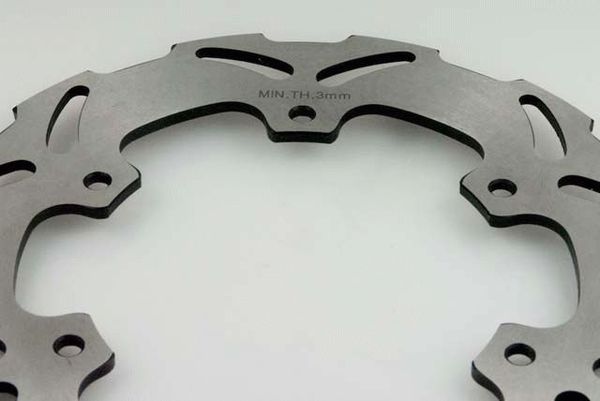

This rear disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- Laser cut, high carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
- Slotted for improved performance

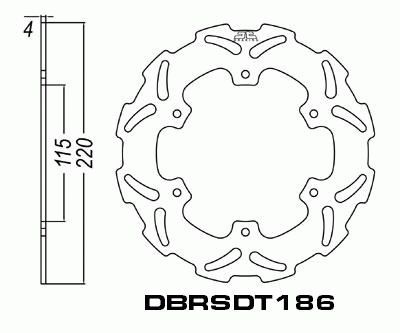

Dimensions
Rotor Diameter: 220mm
Rotor Thickness: 4mm
Inner Clearance: 115mm
Bolt Centre: 133mm
Bolt Diameter: 6mm
Weight: 0.61kg per rotor

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.
