Rear Brake Disc Honda XR650 XR650R 2000-2007

Rear Disc Brake Rotor for Honda XR650

Part DBRSXR6500

Compatibility

Direct replacement for the following models:

XR650 R Rear 00-07

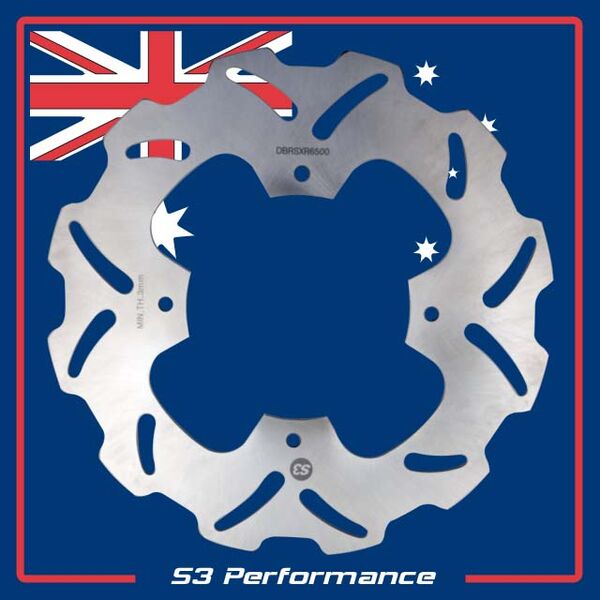

This rear disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics

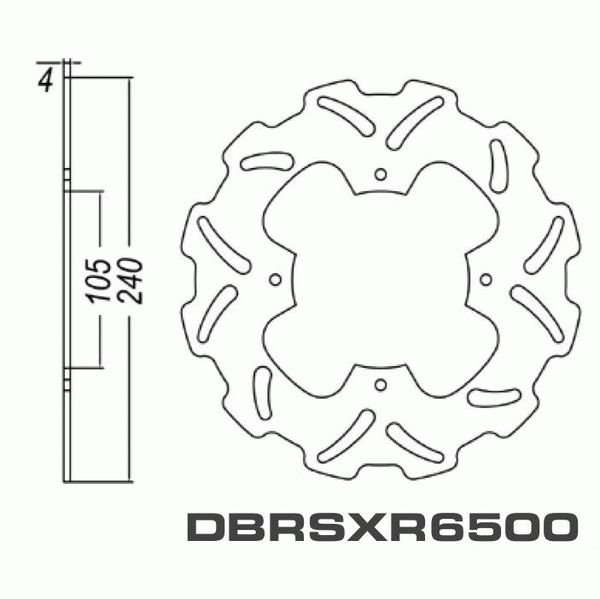

Dimensions
Rotor Diameter 240mm
Rotor Thickness 4mm
Inner Clearance 105mm
Bolt Centre 125mm
Bolt Diameter 6mm

Weight
0.74kg per rotor

Installation
These are a direct replacement for the original rotor, simply remove existing rotor and install the new one.
