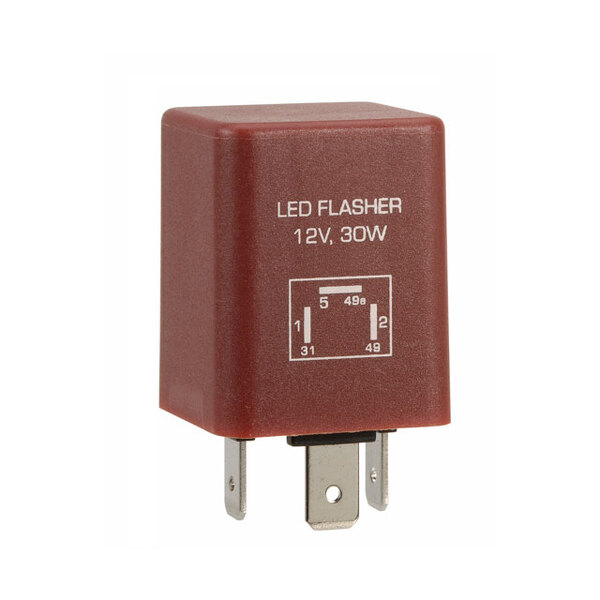

Honda CRF250X CRF450X LED flasher for Indicators suits 2006-2014 models

Plugs directly into the Honda CRF250X and CRF450X wiring loom

Features
- Ensures LED indicators flash at the correct rate
- Direct replacement for original flasher relay on your bike
- Works with 1 pair of Halogens and 1 pair of LED indicators, or 2 pairs of LED indicators
- Includes diagnostic circuit which doubles the flash rate if one indicator is not working, as per Australian requirements for road registration
- See other listings for a matching LED indicators

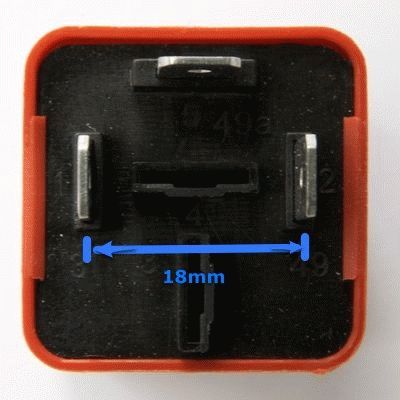

Pin Application
31 = Earth
49 = Power In
49a = Power Out to indicators

Dimensions
Body Length is 35mm
Length including pins is 46mm
Width is 27mm

Installation
Simple. Just remove your existing flasher relay and plug in this LED flasher relay. The three pin configuration is the most commonly used. If it does not match your existing loom then a small bridging harness can easily be made to adapt it.
