Front Brake Disc Honda XR250 XR250R 1990

Disc Brake Rotor XR250 XR400 XR600

An Australian company, S3 Performance Pty Ltd has these high quality discs in stock, in Melbourne and ready to ship.

Part Number: DBFSXR284

Compatibility
Direct replacement for the following models:

Honda
CRM75 Front 90-94
CRF150 F-3,4,5,6,7,8 Front 03-08
CRF230 F-4,5,6,7,8 Front 04-08
SL230 Free Landsports Front 97-01
CR250 R-H,J Front 87-88
CR250 R-K Front 89
CR250 R-L,M Front 90-91
CR250 R-N,P,R Front 92-94
CRM250 AR-V,W Active Radical Front 97-98
CRM250 R-RK (MK1) Front 89-90
CRM250 R-RM,RP,RP2 (MK2) Front 91-93
CRM250 R-RR,RR2 (MK3) Front 94-96
XR250 R-M,N,P,R,S Front 91-95
XR250 R-T,V,W,X,Y,1-4 Front 96-04
XR250 RE,RF Front 84-85
XR250 RG,RH Front 86-87
XR250 RJ,RK Front 88-89
XR250 RL Front 90
CRE260 Front 95-98
XR400 R-T,V,W,X,Y,1-5 Front 96-05
XR600 R-F,G,H Front 85-87
XR600 R-J,K,L Front 88-90
XR600 R-M,N Front 91-92
XR600 R-P,R,S,T,V,W,X,Y Front 93-00
XR650 R Front 00-07

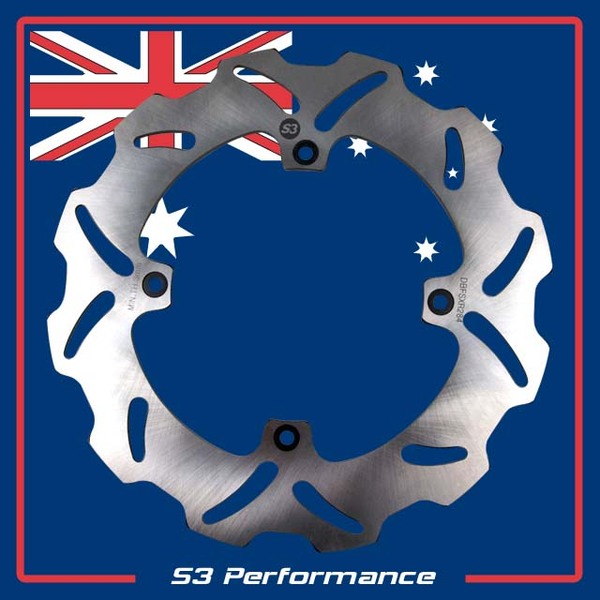

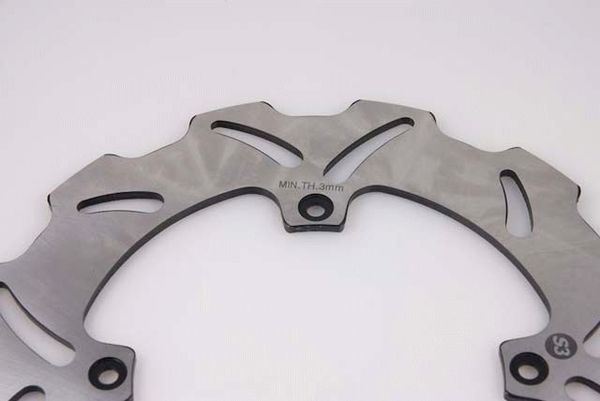

This front disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
- Slotted for improved performance

Dimensions
Rotor Diameter 240mm
Rotor Thickness 4mm
Inner Clearance 118mm
Bolt Centre 134mm
Bolt Diameter 6mm
Weight 0.64kg per rotor

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.

1 or a pair?
The price listed is for one front brake disk rotor. If you want a pair, please buy two of these disc brakes, and we will post them together at no extra cost within Australia. If you want the discs sent by Express Post, or sent internationally, there is an extra charge per rotor.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
