Front Brake Disc Honda MTX80 CR125 MTX125 XL125 XLR125 MTX200 AX-1 Slotted Rotor

Kenmore 17" Microwave
AU$119.95
In Stock
SKU: DBFSXL683.E02
In Stock


Calculate Shipping

Front Brake Disc Honda MTX80 CR125 MTX125 XL125 XLR125 MTX200 AX-1 Slotted Rotor

An Australian company, S3 Performance Pty Ltd has these high quality discs in stock, in Melbourne and ready to ship.

Part Number: DBFSXL683

Compatibility: Direct replacement for the following bikes,

Honda
MTX80 R2 Front 87-
CR125 R-E,F Front 84-85
CR125 R-G Front 86
CR125 R-H,J Front 87-88
CR125 R-K Front 89
CR125 R-L,M Front 90-91
CR125 R-N,P,R Front 92-94
MTX125 RWE,RWF,RWH,RWL Front 85-95
XL125 RF/RH Front 85-86
XLR125 R-W,X,Y,1 Front 98-01
MTX200 RWF Front 85
AX-1 (NX 250 J) Front 88-93
NX250 Dominator Front 88-90
XL250 Degree Front 91-
XL250 RL Front 90
XLR250 R Front 85-88
XLR250 R Front 88-90
XLR250 R Baja Front 88-90
XLR250 R RM/R3M/RP/RR/R3R Front 91-
XL350 R Front 84-85
XR350 RE Front 84
CR500 R-E,F Front 84-85
CR500 R-G Front 86
CR500 R-H,J Front 87-88
CR500 R-K Front 89
CR500 R-L,M Front 90-91
CR500 R-N,P,R Front 92-94
XR500 R-D,E Front 84-85
XL600 R-D,E,F,G,H Front 83-87

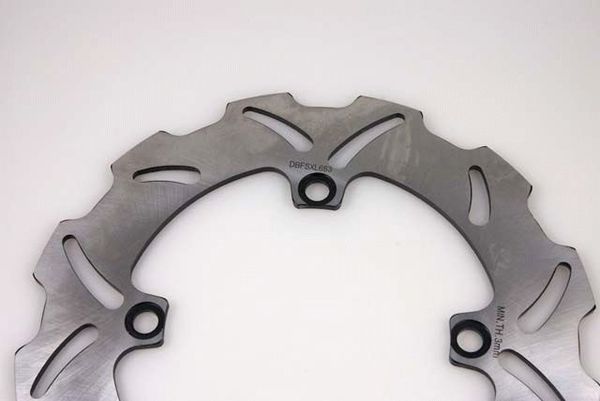

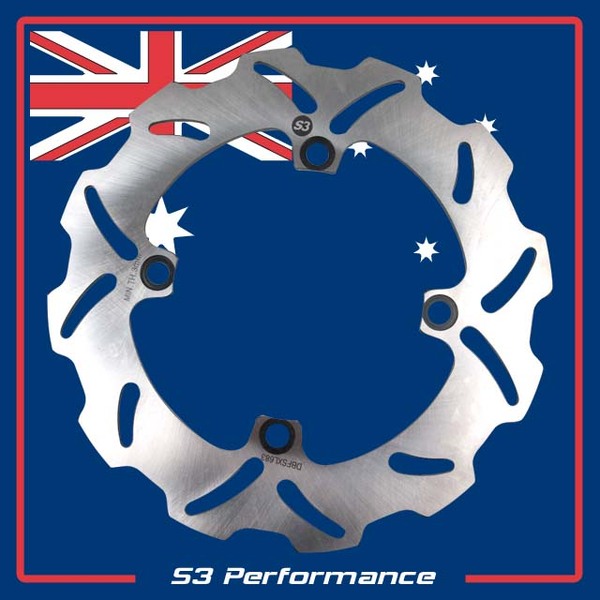

This disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- High carbon stainless steel, hardened and tempered to ensure low pad and rotor wear characteristics
- Slotted for improved performance

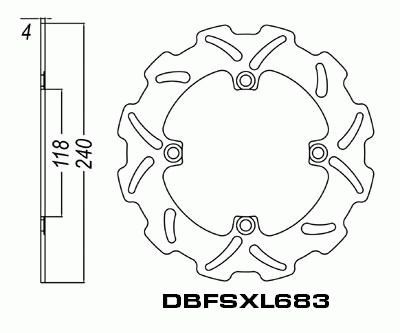

Dimensions
Rotor Diameter: 240mm
Rotor Thickness: 4mm
Inner Clearance: 118mm
Bolt Centre: 134mm
Bolt Diameter: 10mm
Weight: 0.64kg


Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.



(DBFSXL683.E02)

SKU DBFSXL683.E02
Brand Stopp
Shipping Weight 0.7300kg
Shipping Width 0.260m
Shipping Height 0.020m
Shipping Length 0.260m
Unit Of Measure ea
Assembled Length 0.260m
Assembled Height 0.020m
Assembled Width 0.260m
