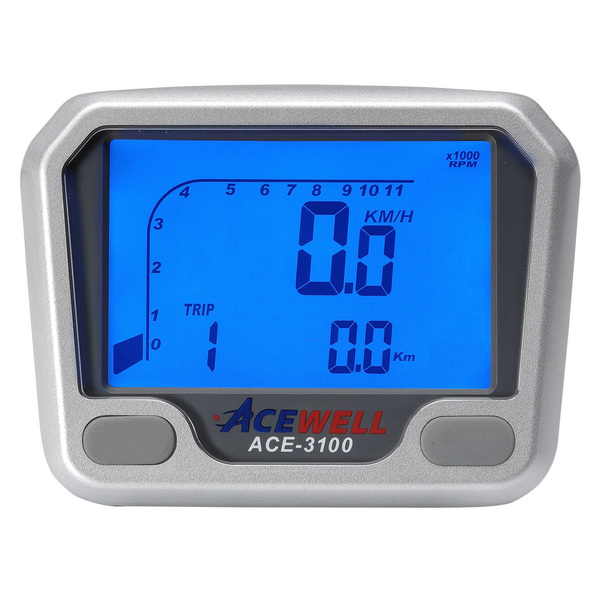

Forklift speedometer with 30kmh speed warning LED

This custom version of the Acewell ACE-3100 was developed for a warehouse that wanted a speed warning for their forklift drivers. It has an LED added which will illuminate when speed reaches or exceeds 30km/h

ADR approved for use on-road where auxiliary indicator and high beam pilot lamps exist.

Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
 - Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, and magnet

Functions:
- Bar Graphic Tachometer to 11,000
- Digital Tachometer to 19,900
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 0-9999 hours
- Total Hours 0-9999 hours

Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

Kit Includes:
- Speedometer head unit
- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)
- Loom extention
- Speed sensor kit with magnetic bolt
- Wiring diagram

Wiring diagram

Click here to download the ACE-3100 wiring diagram

Dimensions: 95.2mm x 72mm x 28.5mm

Easy Installation
The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. Attach the magnetic bolt to a moving part of the wheel. This can be the wheel, drive shaft or other rotating part. Then align the reed switch with the magnet to ensure the magnet passes the sensor for every turn of the tyre. Then program the tyre circumference into the Acewell. That will calculate speed, trip meter, and odometer readings.
