Wave Disc Brake Rotor for Honda

Wave Rear Disc Brake Rotor VFR750 CBR750 CBR1000 XL1000 CB1300

Part Number DBRSVF584

Compatibility
Direct replacement for the following models:

Honda
NS400 R-F,G Front 85-87
VFR400 ZG/H,RG/GYA Front 85-87
VF500 FE,F2E,FF,F2F Interceptor Front 84-85
FJS600 A/D SilverWing (including ABS version) Front 01-06
VFR700 F,F2 Interceptor Rear 86-87
CBR750 F Rear 88-
CBR750 F Hurricane Rear 87-
CBR750 FH,FJ Super Aero Rear 87-88
VFR750 F-G,H,J,K Interceptor Rear 86-89
CBR1000 F-P,R,S,T,V,W,X Rear 93-99
XL1000 VA Varadero (ABS) Rear 03-12
CB1300 F3 Rear 03-04

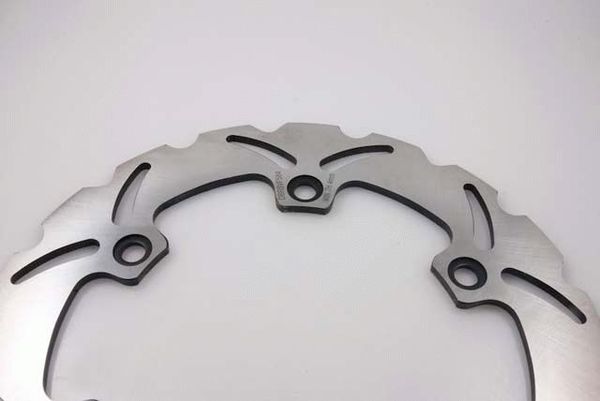

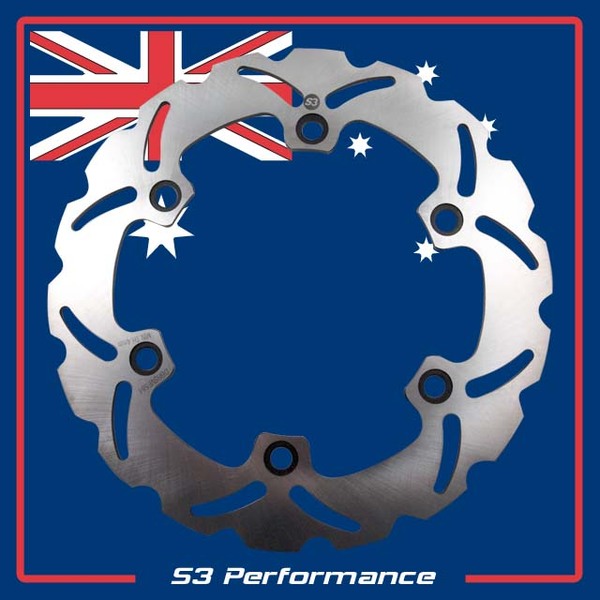

This rear disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- Laser cut, high carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
- Suitable for left and right hand fitments

Dimensions
Rotor Diameter: 256mm
Rotor Thickness: 5mm (4mm version also available, use P/No. DBRSCB1197)
Inner Clearance: 144mm
Bolt Centre: 166mm
Bolt Diameter: 10mm
Weight: 0.85kg

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.
