Disc Rotor Rear RM125 RM250 RMX250 DRZ400..

Disc Brake Rotor Rear RM125 RM250 RMX250 DRZ400

Part Number: DBRSRM189

Compatibility
Direct replacement for the following models:

Suzuki
DRZ-125 Front 03-04
RM125 J,K,L,M,N,P,R,S,T,V,W Rear 88-98
RM250 K,L,M,N,P,R,S,T,V,W Rear 89-98
RMX250 K,M,N,SN,P,SP,R,SR,S,SS,T,ST,V,SV,W,SW Rear 89-98
RMX250 X Rear 99-04
DRZ 400 E/S - Y,K1,K2,K3,K4,K5,K6,K7 Rear 00-09
DRZ 400 S - K8 Rear 08

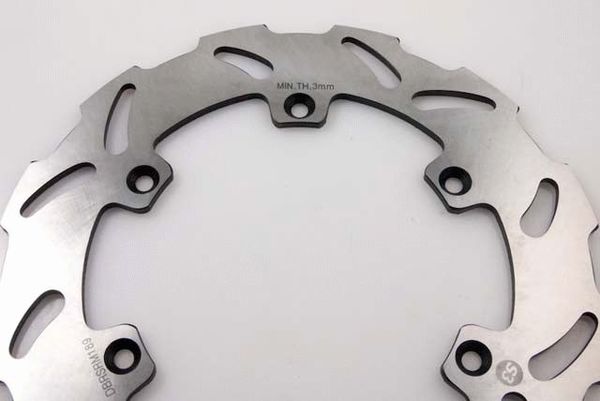

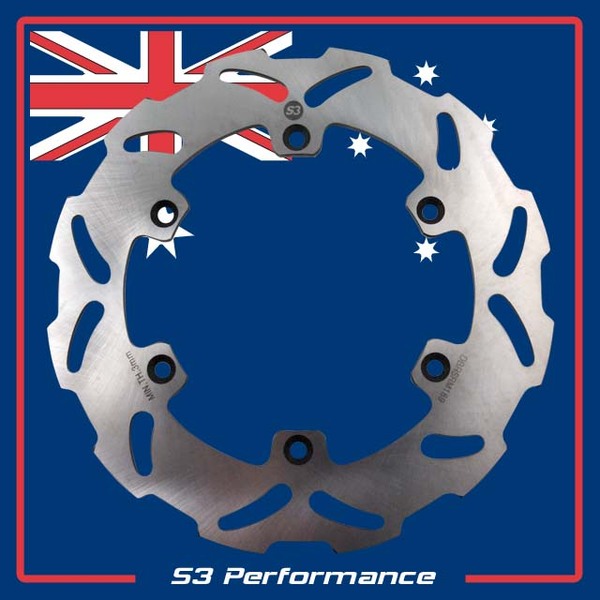

This rear disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- Laser cut, high carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
- Suitable for left and right hand fitments

Dimensions
Diameter 220mm
Thickness 4mm
Inside Clearance 118mm
Bolt Centre 134mm
Bolt Size 6mm
Weight 0.55kg

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.
