Digital speedo with LED surround , Speedo, tacho, trip..

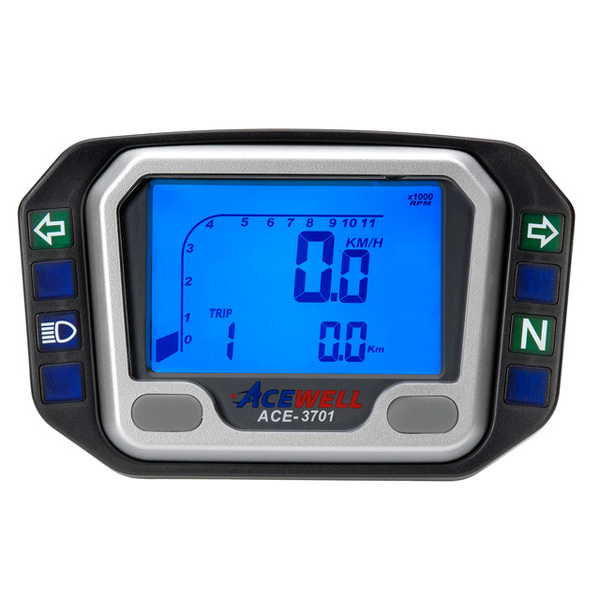

Digital Speedometer suitable for DRZ400 E & SM

Part No: ACE-3701

The Acewell 3701 digital speedometers are a cost effective way to replace the expensive original speedo on the DRZ range. The speedo feature all functions required for legal road use in Austrlia. All Acewell digital speedometers are waterproof and ADR approved for road use. Contact S3 Performance for all your speedometer and gauge requirements. The supplied wiring loom is universal but the the pre-stripped cable ends make it very easy to install.

Features
- Speedo, 2.4 - 399 kmh (248.5 mph)
- Tachometer, up to 20,000rpm
- ADR compliant Pilot Lamps
- Max Speed recording, 2.4 - 399.9 km/h (248.5 mph)
- Average Speed recording
- Trip meter 1&2, 0-999 km
- Odometer, 0 - 999,999km, 0 - 624,999 miles
- Clock 12/24hr
- Ride Timer 0-99 hours, Count automatically begins when vehicle is started
- Total hour meter, 0-9999 hours
- 100% Waterproof

Kit Includes:

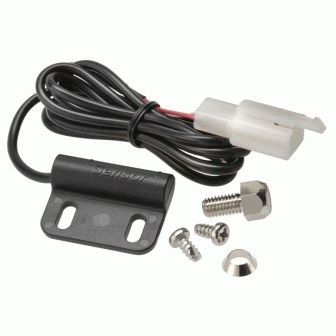

- No Contact Magnetic Sensor and reed switch

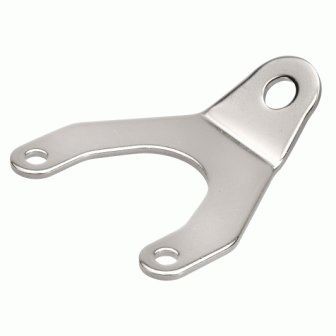

- Mounting Bracket

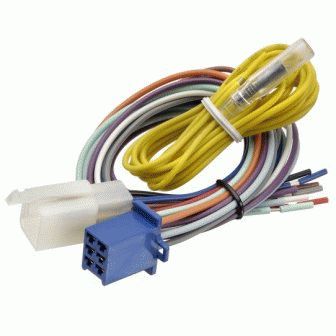

- Universal Wiring Loom, pre-stripped ends for easy installation to any bike
- Wiring diagram and instruction manual


Wiring diagram

Click here to download the ACE-3701 wiring diagram

Specifications:
Power Input: 12VDC
Speed Sensor: No Contact Magnetic Sensor and reed switch
Tacho Input: CDI or Ignition-coil signal
Wheel Circumference setting: 1mm-3999mm (1mm increment)
Operation Temperature: -10C to 80C inner housing
Storage Temperature: -25C to 85C inner housing

Size:
120mm at the widest point, 76mm high, 24mm deep

Installation:

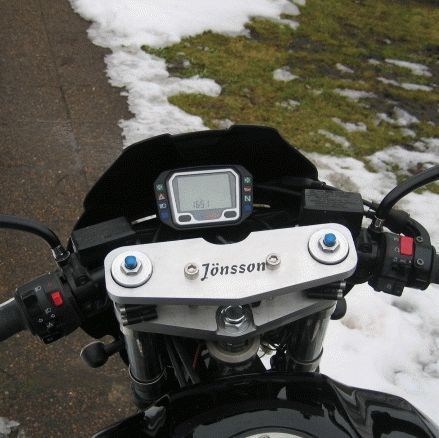

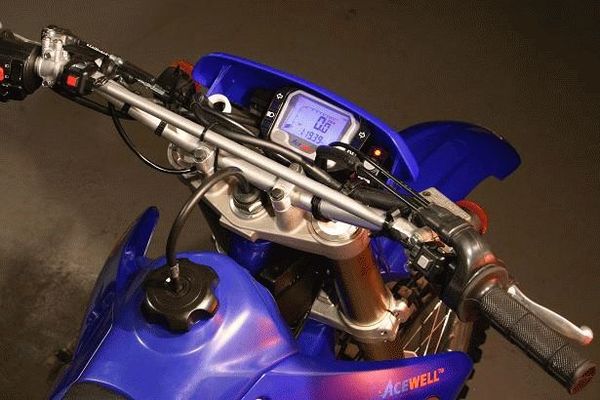

Each speedometer features a mounting bracket and loom. The speed sensor can be mounted anywhere on the bike (front wheel is recommended) while the tacho lead can be hard wired or simply wrapped around the spark plug cable.

Other Models Available
S3 Performance Pty Ltd is the Australian Distributor for all Acewell products. We also stock the ACE-1500, ACE-3150, ACE-3250, ACE-3701, ACE-2853, ACE-2853CP, ACE-2853AB, ACE-3853, ACE-3963, ACE-3969. ACE-4353AB, ACE-4353CP and ACE-4553CP. If there is a model you are after that we do not have in stock, we can get it for you.
