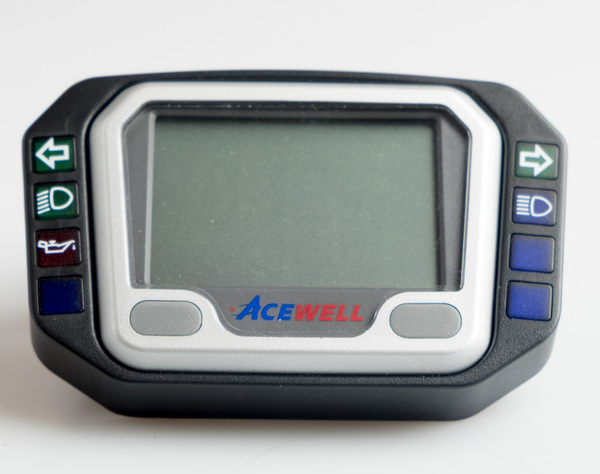

Acewell plug and play Gas Gas FSR Models

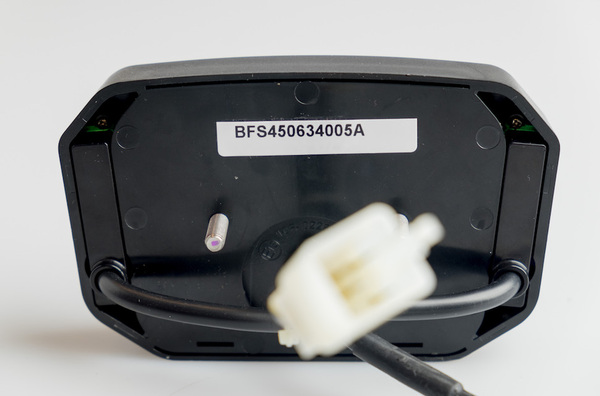

This speedometer is a direct and exact replacement for Gas Gas FSR Models. It features the 6 pin plug and JWPF connectors used on the bikes original wiring loom and will plug straight in, no messing about with cables.

Features
- Speedo, 2.4 - 300 kmh (187.5 mph)
- Bar Tachometer, up to 11,000rpm
- Gear change warning indicator (100 - 19,900rpm)
- ADR compliant Pilot Lamps
- Max Speed recording, 2.4 - 300 km/h (187.5 mph)
- Average Speed recording
- Trip meter 1&2, 0-999 km
- Odometer, 0 - 999,999km, 0 - 624,999 miles
- Clock 12/24hr
- Ride Timer 0-99 hours, Count automatically begins when vehicle is started
- Total hour meter, 0-9999 hours
- 100% Waterproof


Specifications:
Power Input: 12VDC
Speed Sensor: No Contact Magnetic Sensor and reed switch (Not included)
Tacho Input: CDI or Ignition-coil signal
Wheel Circumference setting: 1mm-3999mm (1mm increment)
Operation Temperature: -10C to 80C inner housing
Storage Temperature: -25C to 85C inner housing

Size:
120mm at the widest point, 76mm high, 24mm deep

Installation:

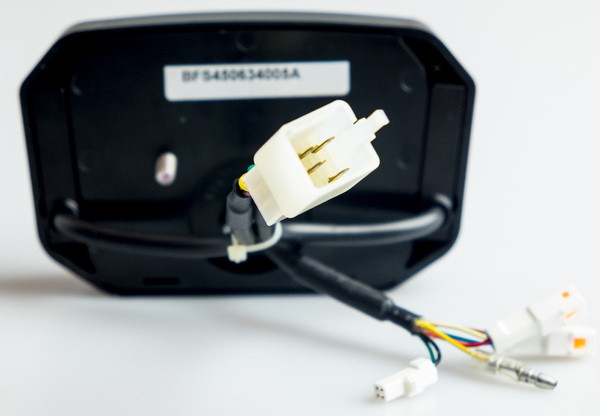

Simply plug it into the 6 pin and JWPF connectors found behind your FSRs headlamp, and away you go!
