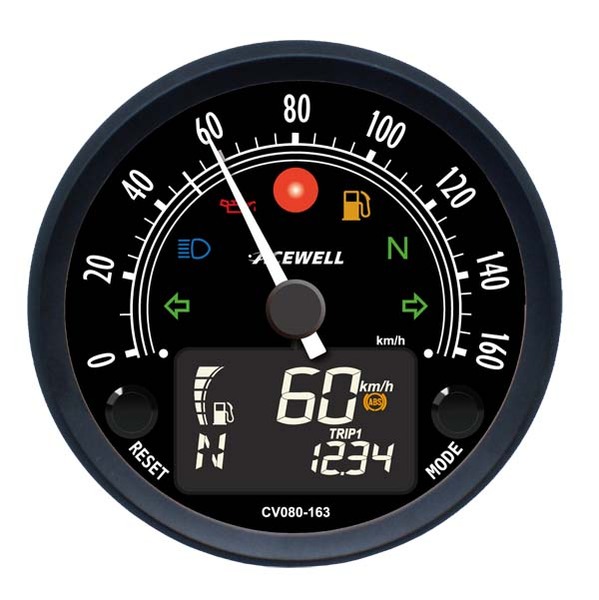

Acewell CV080 80mm needle speedometer 160kmh black face black anodized alloy

80mm Needle speedometer

The Acewell CV080 speedometer features a Negative VA LCD screen for high contrast in daylight. It also features a Needle speedometer or tachometer, integrated digital functions, 7 LED indicators and 6 LCD indicators.

Speedometer Needle Sweep options

We have 3 options, choose from one of 3 needle sweep ranges to suit your vehicle:

160km'h
220km/h
280km/h

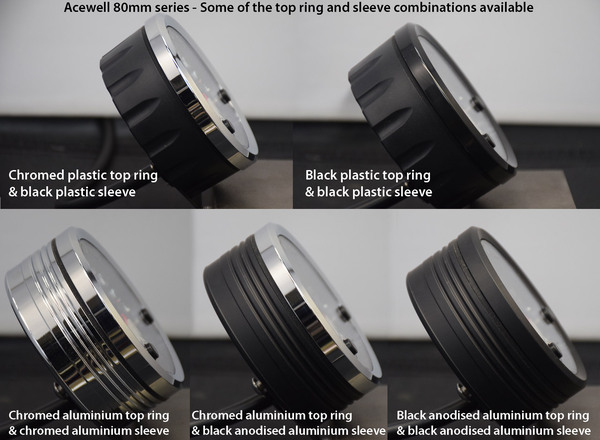

Body Material Options

Plastic chrome front bezel with black plastic body
Black anodized alloy bezel with black plastic body (Add $36)
Black anodized alloy bezel with black anodized alloy body (add $100)
Polished chrome alloy front bezel with polished chrome body (add $100)

Dimensions

80mm diameter, 39.5mm deep

Features

• Needle speedometer, integrated digital functions, 7 LED indicators and 6 LCD indicators.
• Negative VA LCD displays digital functions of speedometer, tachometer, maximum RPM and speed, average speed, 3 trip meters, odometer, riding time, total riding time, total hour meter, volt meter, temperature meter, clock, bar-fuel gauge, and temperature gauge.
• 5 level backlight brightness can be manually adjusted.
• Gear indicator which calculates gear by comparing speed and RPM.
• Fuel gauge full and empty resistances are fully adjustable to be compatible with most fuel senders.
• Fuel gauge can be disabled if not required.
• Flexible battery warning voltage setting from 11.0 to 17.0V.
• Allows end user to adjust odometer when the odometer is less than 30km, great for testing and setup.
• Odometer and total riding time are stored in memory, even when the power is off.
• Universal wheel circumference setting range from 1 to 3,999mm. Compatible with all motorcycles, plus go-karts, dune buggies, quad bikes, golf carts, race cars, and tractors
• Can mount through an 80mm hole in dashboard, or onto handlebar yoke with included stainless steel bracket.
• includes LED lights for left indicator, right indicator, engine temperature warning, RPM warning, fuel warning, and  Neutral
• Includes bracket, RPM sensing wire, hall or reed speed sensor, fitting kits, wiring harness and temperature sensor.
• Excellent water resistant, anti-vibration structure and noise immunity design.
