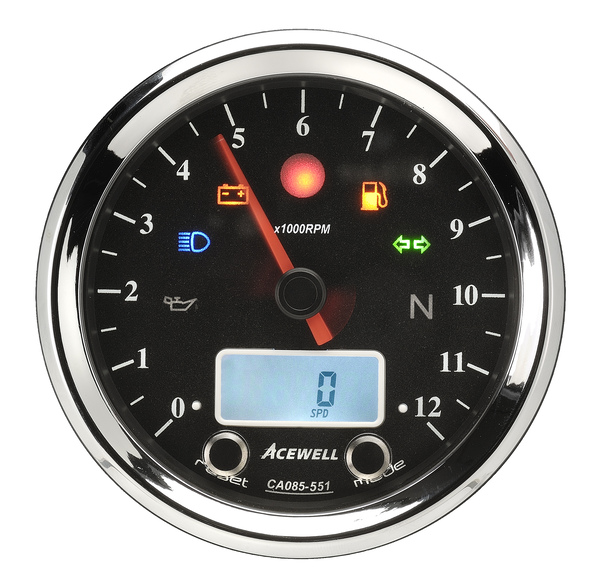

95mm tachometer 12000rpm black face digital speedo chrome alloy bezel and sleeve

95mm Chrome rimmed Needle Tachometer and Digital Multifunction Gauge to replace your original gaugue

Features

Tachometer with needle sweep, available in 2 ranges 9000rpm and 12000rpm

Can mount through an 85mm dashboard hole, or mount to the handlebar using the included  stainless steel bracket

Digital LCD displays speed, bar fuel, or bar temperature, gear indicator, and one other function simultaneously

Digital LCD can also display digital tachometer up to 19990rpm, or digital Speedometer up to 399km/h

Gear indicator calculates the gear by comparing speed and RPM. Can be switched off if not required

10 level backlight brightness for viewing in all light conditions

Fuel gauge with fully adjustable resistance settings to be compatibble with most fuel senders. Can be disabled if not required

Flexible battery warning voltage setting from 11.0V to 17.0V

Odometer can be adjusted when the measurement is less than 30km for test and setup purposes

Univeral wheel circumference setting from 1mm to 3999mm caters to Motorcycles, Cars, ATVs, Trucks, and Tractors.

Includes main unit, mount ring, mount bracket, RPM sensing wire, hall or reed sensor, fitting kit, wiring harness tails, wiring diagram, instriuctions, and engine temperature sensor

Body Material Options:

Choose one of the following body options using the dropdown boxes at the top of the page:

Black plastic body with chromed plastic plastic bezel
Anodized black alloy body and bezel (add $100)
Chrome polished alloy body and bezel (add $100)

Tachometer Needle Sweep options

We have 2 options, choose from one of 2 needle sweep ranges to suit your vehicle using the dropdown options at the top of the page:

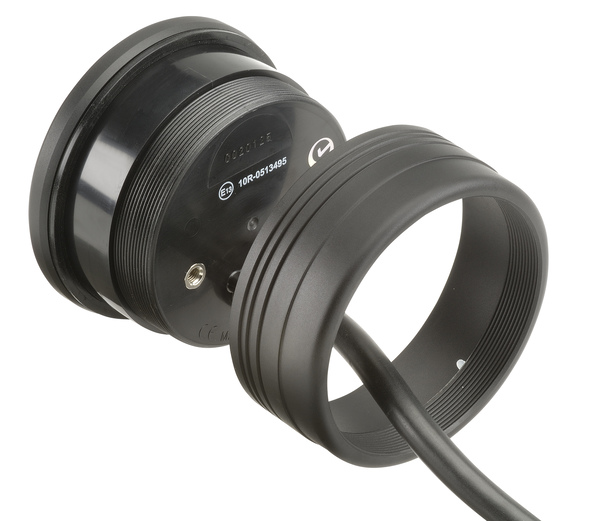

Dimensions

Bezel (top ring) 100mm outer diameter (plastic option) / 95mm outer diameter (Alloy option)
Body Sleeve outer diameter: 95mm
Total depth 47mm
Visible depth if panel mounted 10mm
Hole diameter for panel mounting: 85mm

Included LED warning lights

Left/Right indicator
Neutral
High Beam
Battery warning light
Oil warning light
