Acewell ACE-S2 Speed Sensor, Universal installation

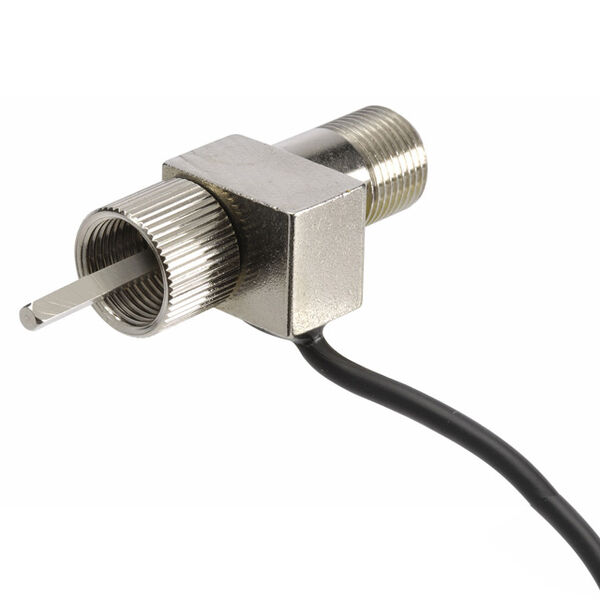

Acewell ACE-S2 Hall Effect Cable

The ACE-S2 Hall Effect cable can be used as a universal speed sensor with any speedometer that accepts a 5V signal. It can also be used as a piggyback cable, enabling the original speedometer to be retained and work in unison with an Acewell speedo and its additional functions. The Acewell S2 Hall Effect cable connects into the back of the original speedo. The original cable then plugs into the back of the S2 and the 2 pin QC connector plugs into the Acewell speedometer. To piggyback the S2 cable in this way, the original speedo cable must have an M12 threaded input to match that of the ACE-S2.

Here are some instructions of how to install an ACE-S2 on a Honda XR400M (Motard). The method is the same for most other bikes.

Specifications

Input Connector M12 threaded
Output Voltage 0 - 5V
Fitted with a 2 wire QC connector for attachment to an Acewell Meter
If you wish to use the Acewell ACE-S2 Hall Effect cable with a third party speedometer or a data logger, connect the red wire of ACE-S2 output to the relative positive wire and white wire to ground.
