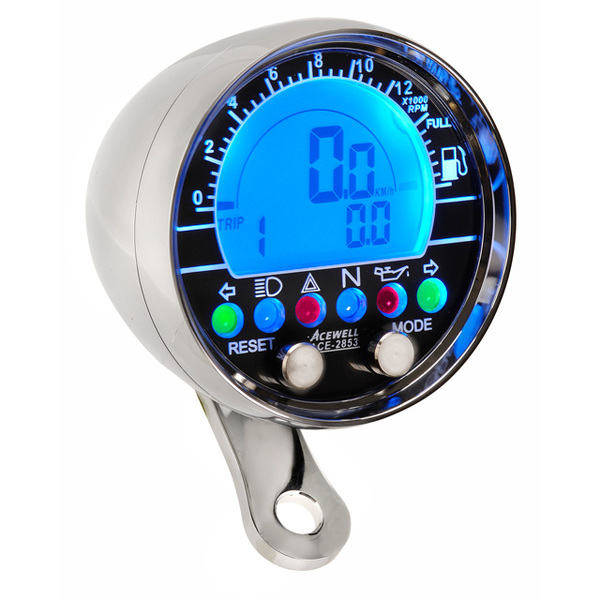

Acewell ACE-2853CP Chrome Housing Motorbike digital speedo with LCD

Ideal replacement or upgrade to original instrument cluster

The ACE-2853CP digital speedometer from S3 Performance is ADR approved and road legal for passenger vehicles and motorcycles in Australia and New Zealand.

Features:
- Polished Chrome Metal Housing
- 100% Waterproof
- Backlit LCD screen, easy to read
- Digital tachometer up to 19,900rpm
- Built-in RPM shift warning
- Fuel gauge
- Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles

Functions:
- Digital Tachometer 100-19,900rpm
- Bar graphic Tachometer 500-12,000rpm
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 1 & 2 0-99hrs
- Total Hours 0-9999hours
- Bar Fuel Meter 0-7 bars

Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: Reed sensor with magnetic bolts

Kit Includes:
- Speedometer head unit
- Integrated chrome mounting bracket

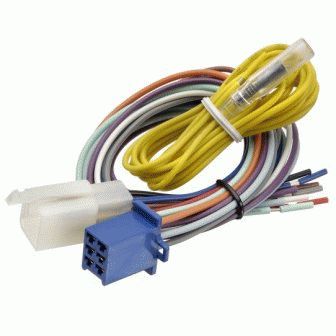

- Loom extention

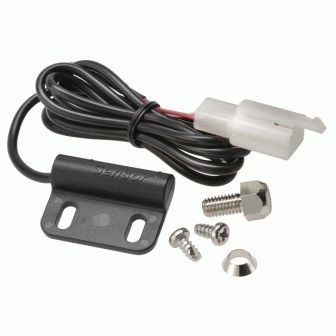

- Speed senor kit with two magnetic bolts
- Wiring diagram

Wiring diagram

Click here to download the ACE-2853 wiring diagram

Dimensions: 72mm dia x 58mm deep

Easy Installation
The Acewell speed pickup uses a reed switch and magnet. Both are included in the kit. For bikes, simple replace a bolt in your front disc rotor with the included magnetic bolt, and align the reed switch with the magnet. Then program the tyre circumference into the Acewell. That will calculate speed, trip, and odometer readings. For cars, simply ensure the magnet passes the sensor for every turn of the tyre. This can be done using the wheels, drive shaft or other rotating parts

Australian motorcycle registration compliance

The ACE- 2853 includes all warning lights required for Australian road regristration of a motorcycle, including High Beam,Hazard,  Neutral, and Left/Right turn signals. There are other Acewell models with warning lights optimised for overseas markets such as the ACE-2856. We receommend that for Audstralia you purchase the AC-2853 instead.
