Acewell 3701 Digital Speedo for Kawasaki KLX650 With Plug in Speedo Cable
Notify me when back in stock
Digital Speedo Speedometer Tacho for Kawasaki KLX650 With Direct Fit Speedo Cable
The ACE-3701 is a highly versatile and functional unit that will provide much more modern speedo/tacho solution when compared to the original KLX unit. This kit comes with everything you need to install the unit including mounting bracket, wiring loom adapter, RPM sensor wire and the all important speedo drive cable to plug straight into your bikes existing drive.
From there it's a simple bit of maths to work out the ratio that the drive turns at in relation to the front wheel. You take the outer diameter of the front tyre and divide that value by the amount of turns the speedo drive makes in one wheel revolution. Then simply punch that value into the speedo during the set-up and it does the rest! This extra component really finishes off the install. A user manual and wirng diagram are also included.
Features:
- 100% Waterproof
- Backlit LCD screen, easy to read
- Optional tachometer scales of 10,000rpm or 20,000rpm.
- ADR compliant pilot lights
- Hour meter and Odometer readings stored in internal menory
- Includes bracket, RPM sensing wire, reed speed sensor, fitting kits and wiring harness.
- ADR approved for road use for both motorcycle and passenger vehicles
- Plug and play speedo cable
Functions:
- Bar Graphic Tachometer 500-10,000RPM, or 1,000-20,000RPM
- Digital Tachometer 100-10,000RPM or 100-20,000RPM
- Speedometer 2.4-399km/h
- Max Speed 2.4-399km/h
- Average speed 2.4-399km/h
- Trip Meter (1 & 2) 0-999km
- Odometer 0-999,999km
- Clock 12 or 24 hour option
- Hour Meter 0-9999 hours
- Total Hours 0-9999 hours
Specifications
- Power Input: DC 12V
- Tachometer input: CDI or Ignition Coil Signal
- Speed Sensor: ACE-S6 digital speedo cable
Kit Includes:

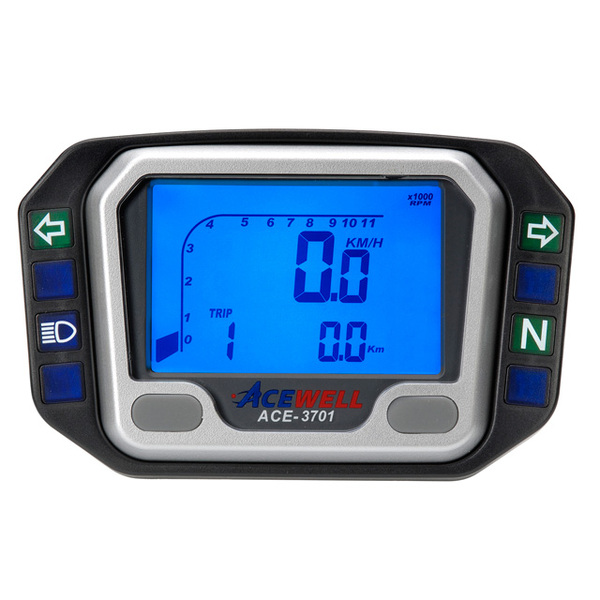

- Speedometer head unit

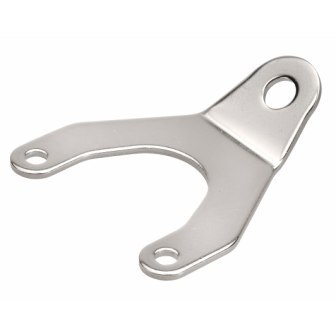

- Mounting bracket (optional triple clamp bracket available P/No.ACE-IHO)

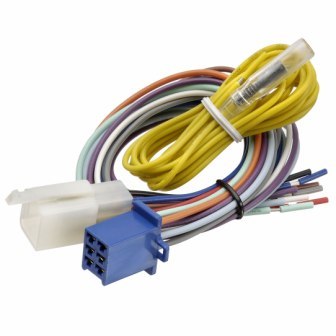

- Loom extention

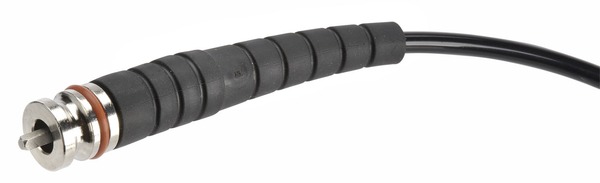

- ACE-S6 digital speedo cable
- Wiring diagram
Dimensions: 122 x 77 x 25mm
(ACE-3701S6KLX)
SKU | ACE-3701S6KLX |
Brand | Acewell |
Shipping Weight | 1.2000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.150m |
Shipping Cubic | 0.001500000m3 |
Unit Of Measure | ea |
