320mm Orange Oversize Disc with oversized Caliper bracket for KTM and Husaberg Motards

Included with this kit:

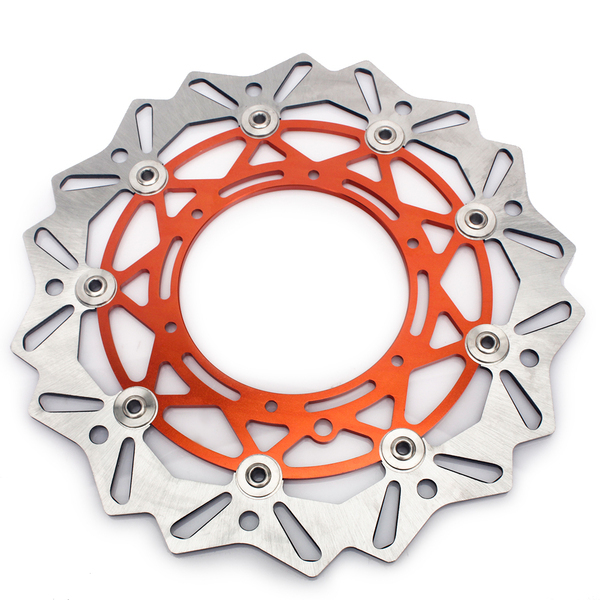

1 x Front Floating Disc Brake Rotor with Orange Carrier (DB320KTMOR)

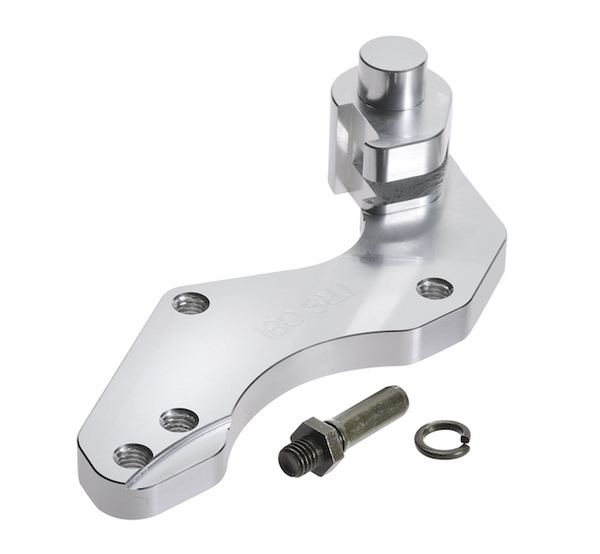

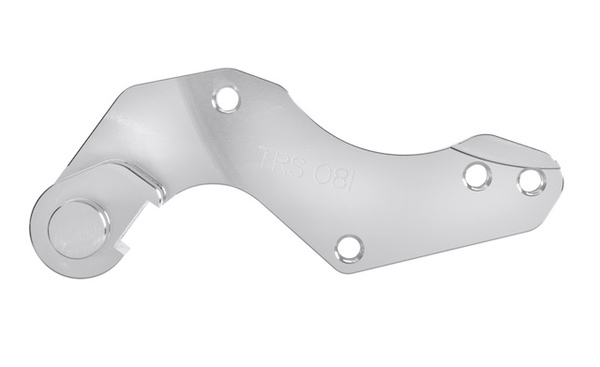

1 x Oversize caliper bracket (TRS081)

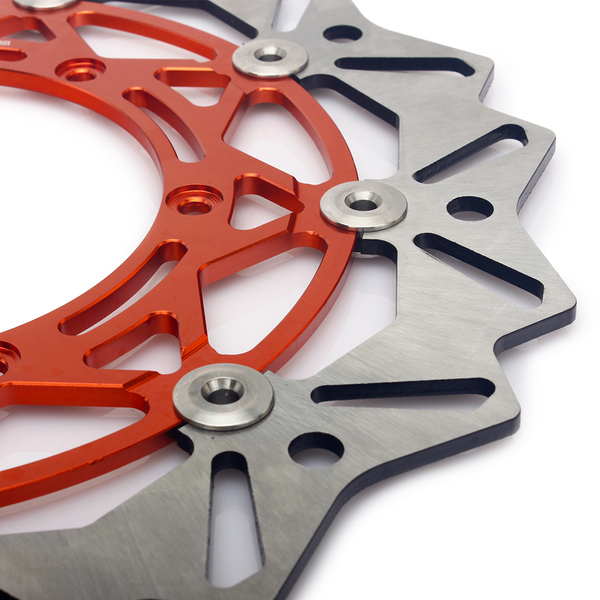

This disc rotor is constructed from high carbon steel. The wave design ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Compatibility:
Direct replacement for the following models:

Husaberg
FC400 Front 00-02
FE 400 Front 00-03
FE 400 E Front 01-03
FS 400 C Front 01-03
FS 400 E Front 01-03
FC 450 Front 03-05
FE 450E Front 04-09
FX450 E Front 03-05
FC 470 (6 Speed) Front 01-02
FX 470 Front E 01-02
FC 501 (4 Speed) Front 99-03
FE 501 E Front 99-04
FE 501 S Front 99-04
FC 550 (4 Speed) Front 01-05
FE 550 E Front 04-08
FC 600 (4 Speed) Front 99-03
FE 600 Front 99-03
FE 600 E Front 99-02
FE 650 E Front 01-08
FS 650 C Front 01-05
FS 650 E Front 01-05
FX 650 Front 01-05

KTM
125 EXC Front 94-10
125 EXE Front 2000-
125 GS Front 93-97
125 LC2 Front 99-01
125 MX Front 92-93
125 SX Front 93-10
144 SX Front 08-10
150 SX Front 08-10
200 EXC Front 98-10
200 SX Front 03-07
250 GS Front 93-97
250 SX Front 93-10
250 SX-F Front 06-10
300 EXC Front 93-10
300 GS Front 91-95
300 MX Front 91-92
300 SX Front 00-02
350 GS Front 93-
360 SX, EXC Front 96-98
380 EXC Front 98-03
380 SX Front 98-03
400 EXC Front 94-05
400 LC4 Front 93-96
400 SX Front 98-02
450 EXC Front 03-09
450 SX-F Front 03-10
500 MX Front 92
500 SX Front 93-95
505 SX-F Front 07
520 EXC Front 00-02
520 SX Front 00-02
525 EXC Front 03-10
525 SX Front 03-06
530 EXC Front 03-10
530EXC-R Front 08-10
540 SXC Front 99-00
600 GS Front 93-
600 LC4 Enduro Front 91-92
620 SC Super Competition Front 98-02
625 LC4 Super Competition Front 02
625 SXC Front 03-07
640 LC4 Supermoto Front 98-99

Features:

• High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
• Suitable for left and right hand fitments
• includes a mount hole for the speedo magnet

Dimensions:
Rotor Diameter 320mm
Rotor Thickness 5mm
Inner Clearance 127mm
Bolt Centre 143mm
Bolt Diameter 6.4mm

Installation:
This is a direct replacement for the original rotor, simply remove existing rotor and install the new one. Use the included bracket to mount the brake caliper to compensate for the larger disc diameter.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
