Front Brake Disc Honda CB750 F2 CB 750 1992-2002

Wave Disc Rotor for Honda

An Australian company, S3 Performance Pty Ltd has these high quality discs in stock, in Melbourne and ready to ship.

Part Number: DBFSCBR188

Compatibility
Direct replacement for the following models:

Honda
CB500 R,S,T Front 94-96
CB500 S-W,X,Y,1,2,3 Front 98-03
CB500 V,W,X,Y,1,2,3 Front 97-03
CBF500 4 (non ABS) Front 04
CBF500 A4-A7 (ABS) Front 04-07
NT650 Deauville Front 98-05
NT700 V-6,7 Deauville Front 06-07
CB750 F2-N,P,R,S,T,V,W,X,Y,1,2 Seven Fifty Front 92-02
VFR750 F-J,K Interceptor Front 88-89
VFR750 F-L,M,N,P Front 90-93
VT750 C,CA,CB,DC Shadow (Aero,Spirit) Front 97-07
VT750 DC Black Widow Front 01-04
VT750 DC Shadow Spirit Front 08
CBR1000 F-H,J Hurricane Front 87-88
CBR1000 F-K,L,M,N Front 89-92
CBR1000 F-P,R,S,T,V,W,X Front 93-99
ST1100 A Pan European (ABS version) Front 96-01

Cagiva
750 E Elefant Front 95-
900 Canyon i.e. Front 96-
900 E Elefant Front 95-
900 Elefant AC/E Front 93-94

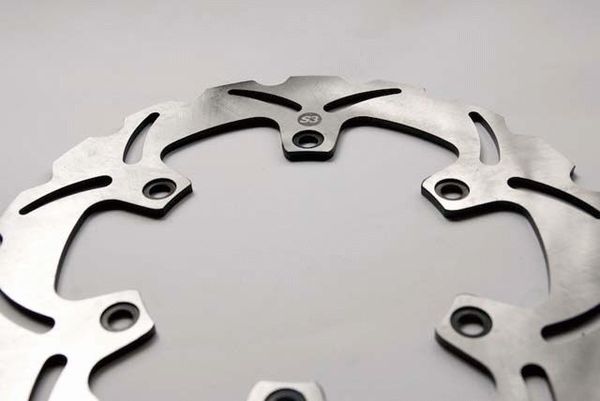

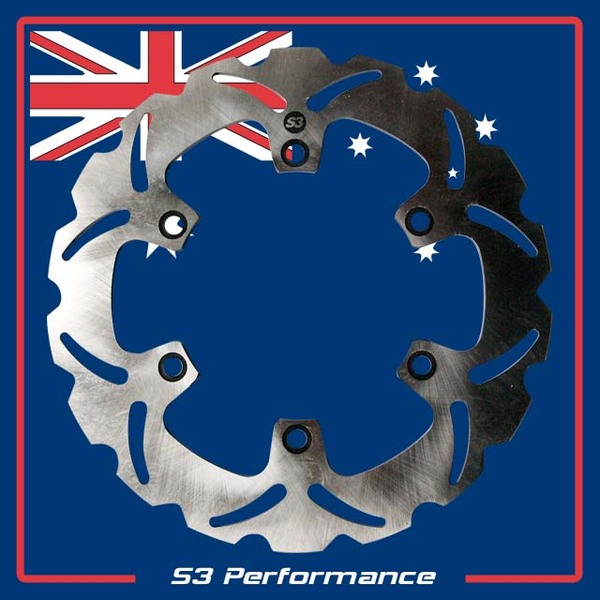

This front disc rotor is constructed from 420 stainless steel. The shape of the disc ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Features:
- High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
- Slotted for improved performance

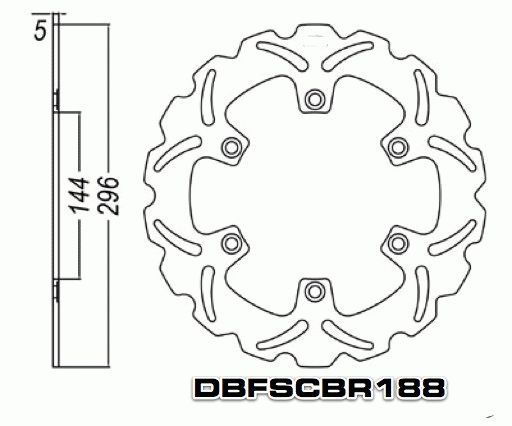

Dimensions
Rotor Thickness 5mm
Inner Diameter 144mm
Bolt Offset 166mm
Bolt Diameter 10.4mm
Weight 1.20kg

Installation
These are a direct replacement for the original rotors, simply remove existing rotors and install the new ones.

1 or a pair?
The price listed is for one front brake disk rotor. If you want a pair, please buy two of these disc brakes, and we will post them together at no extra cost within Australia. If you want the discs sent by Express Post, or sent internationally, there is an extra charge per rotor.

Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
