320mm Oversize Disc with silver TRS084 bracket for Suzuki DRZ400

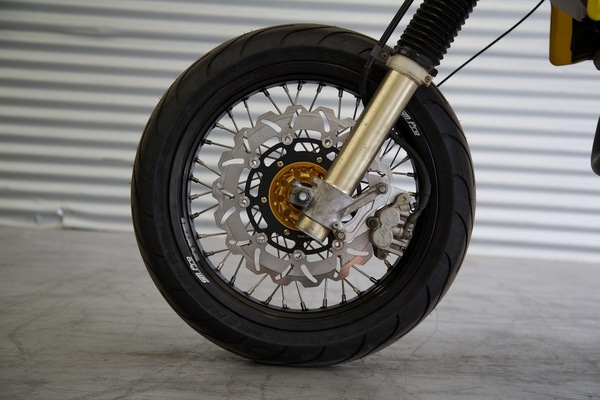

1 x Front Floating Disc Brake Rotor with Black alloy centre (DB320-SUZ1)

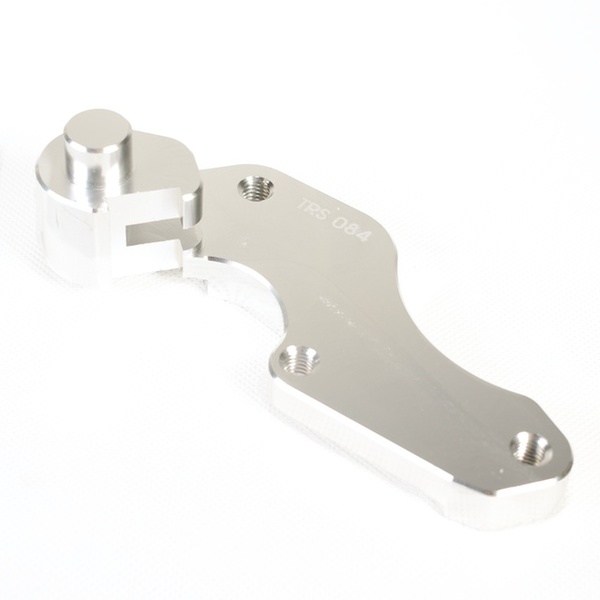

1 x silver caliper extension bracket (TRS084S)

This disc rotor is constructed from high carbon steel. The wave design ensures good heat dissipation under heavy braking sessions, reducing brake fade, minimising warping, and ensuring rotor longevity. The slotted rotor ensures water and dirt are dispersed quickly when braking.

Compatibility:
Direct replacement for the following models:
DR-Z400, DRZ400E, DRZ400S  2000-2021

Features:
High carbon stainless steel hardened and tempered to ensure low pad and rotor wear characteristics
Suitable for left and right hand fitments

Dimensions:
Rotor Diameter: 320mm
Rotor Thickness: 4mm
Inner Diameter: 118mm
Bolt Centre: 134mm
Bolt Diameter: 6mm

Installation:
This is a direct replacement for the original rotor, simply remove existing rotor and install the new one. Use the included bracket to mount the brake caliper to compensate for the larger disc dia.


Product Origin

Our disc rotors are manufactured in Taiwan and China to European standards. Don't be concerned about the quality. We have many customers using our rotors and the WA Stuntors use them on their stunt bikes.

Many of the other discs are all from the same group of factories. Mostly, they all look the same but the quality varies a great deal. Many do not have any carbon content so the braking ability is poor, some have too much so they rust quickly, some use case steel carriers making them heavy while others have not been ground post production and therefore vary in thickness and create a heavy pulsing when braking.

We are very involved with our manufacturing process and quality assurance. We also offer full follow up support and provide a 24 month warranty to support our customers.
